Truck Lock™ Accessories

COMPRESSOR

Use as an alternative to plant air or where plant air is not available.  Compressor can operate up to 15 locks within a 300 feet maximum distance.  Oil-less and maintenance free.

CONCRETE HOLE FORM-NEW CONSTRUCTION

Place the hole form in correct position prior to pouring concrete for the approach.  Form is 10″ diameter and comes in 12″ sections.

CONSOLE SUPPORT-METAL BUILDING

Use in a non-structural area of metal building wall.  Anchors to floor for optimal placement.

CONSOLE SUPPORT-OPEN DOCK (STANCHION) KIT

Use where there are no walls to attach console.  Mounts to edge of dock face.

INTERCONNECT-DOCK DOOR OR LEVELER

Restraint can be operated normally or interconnected to a dock leveler or door.  Set the Truck Lock™ operating switch on the control box to “Auto”.  The ram bar will then automatically raise and lower when the door opens or closes or as soon as the lip on the dock leveler raises or lowers.  Dealer must specify type required-dock door or leveler-switch plate and wiring is different for each.

INTERLOCK-DOCK DOOR OR LEVELER

Cuts power to an overhead door or powered leveler.  Until ram bar is raised, the door or dock leveler cannot be operated.  Once restraint is raised (ram bar up and inside green light is on), a relay inside the restraint control box is energized, restoring power to the dock door or leveler.

ASPHALT KIT

Use when installing lock in asphalt or other non-concrete approaches.

SENSOR SWITCH KIT

When the RIG activates the sensor wand, a flashing blue light on the control box indicates a truck is present.  Once the truck is restrained, the blue indicator light and a green indicator light become steady, indicating that the truck is safe to load/unload.

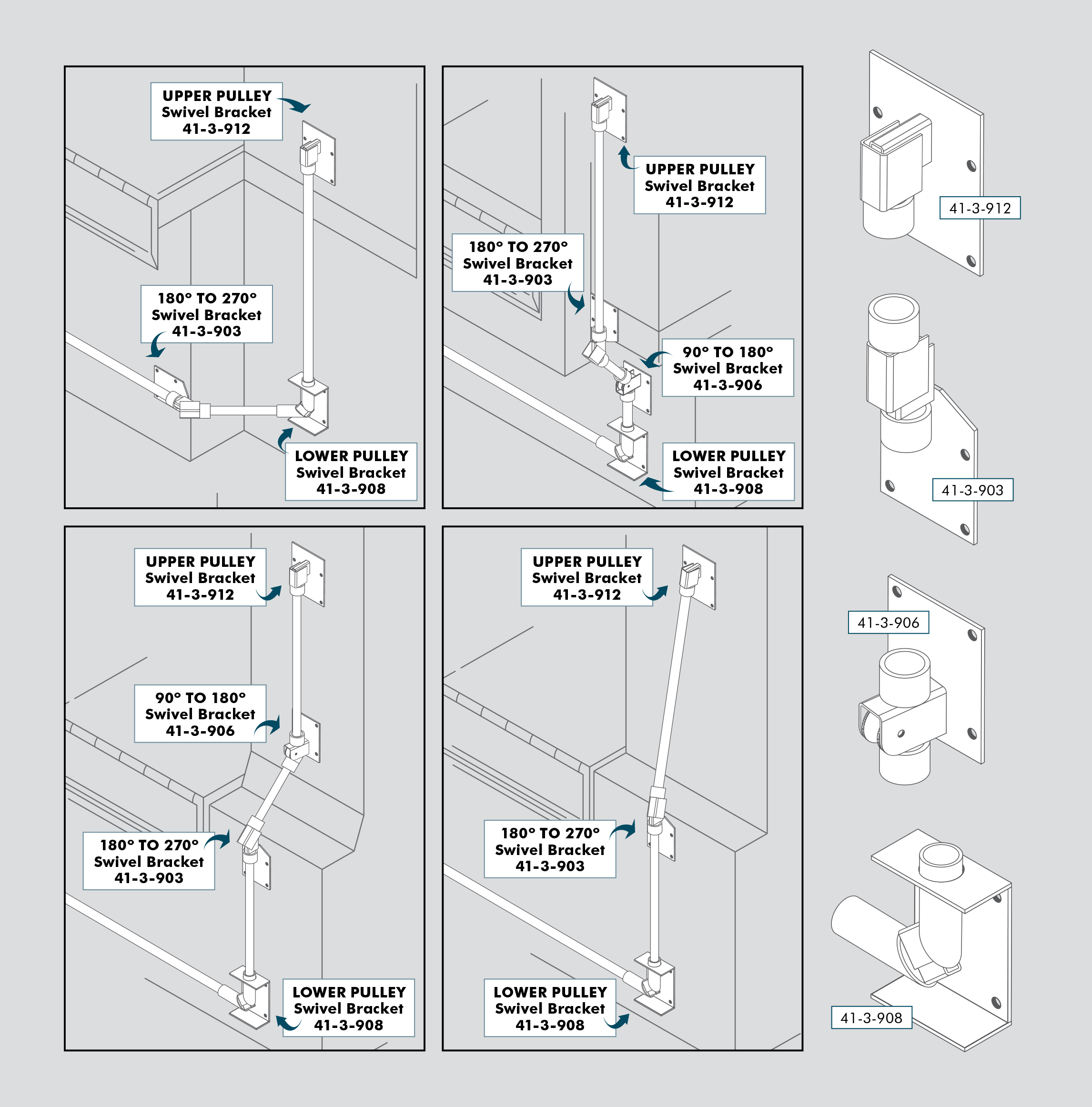

SWIVEL BRACKETS

Use to guide truck lock cabling around corners or up curb on the dock wall.  Multiple configurations can be used in a variety of combinations:

  • Upper Pulley Swivel Bracket 41-3-912
  • Lower Pulley Swivel Bracket 41-3-908
  • 180º to 270º Swivel Bracket 41-3-903
  • 90º to 180º Swivel Bracket 41-3-906

COMMUNICATION

Improve safety and efficiency at the loading dock by providing visual communication between the dock personnel and the truck driver.

Simple, reliable and cost-effective warning system that reduces the risk of accidents around the loading dock.

Establishes a clear line of communication between drivers and dock personnel.

Highly visible red/green LED lights with signage.

Integral eyebrow-type sun visors for extended visibility.

Outside Lights:  Constant flashing red or green LED lights and signage instruct the truck driver when it is safe to back into or pull away from the loading dock.

Inside:  Constant flashing red or steady green LED lights.

Exterior LED light display for vehicle drivers.

Interior LED light display for dock personnel.

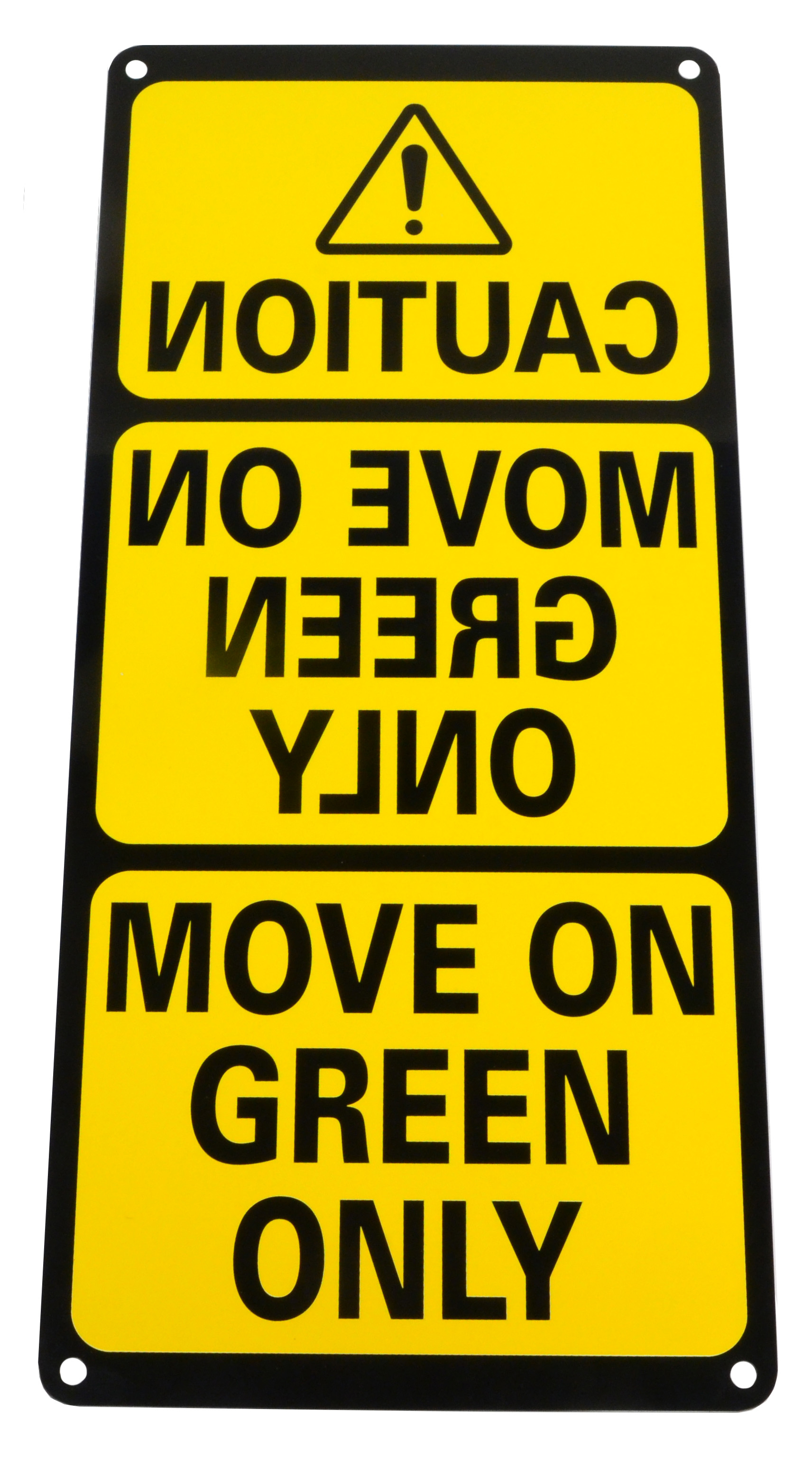

Caution signs for inside and outside the dock.
