The NOVA EZ-Lock™ is a manual hook-style vehicle restraint that secures the trailer’s rear impact guard (RIG) at the dock to reduce the risk of premature departure and trailer movement during loading and unloading. Its spring-loaded housing lowers with truck contact, and the carriage automatically adjusts with trailer float. The EZ-Lock™ has an enhanced design with a patented Triple Range Hook that outperforms competitor hook-style restraints:

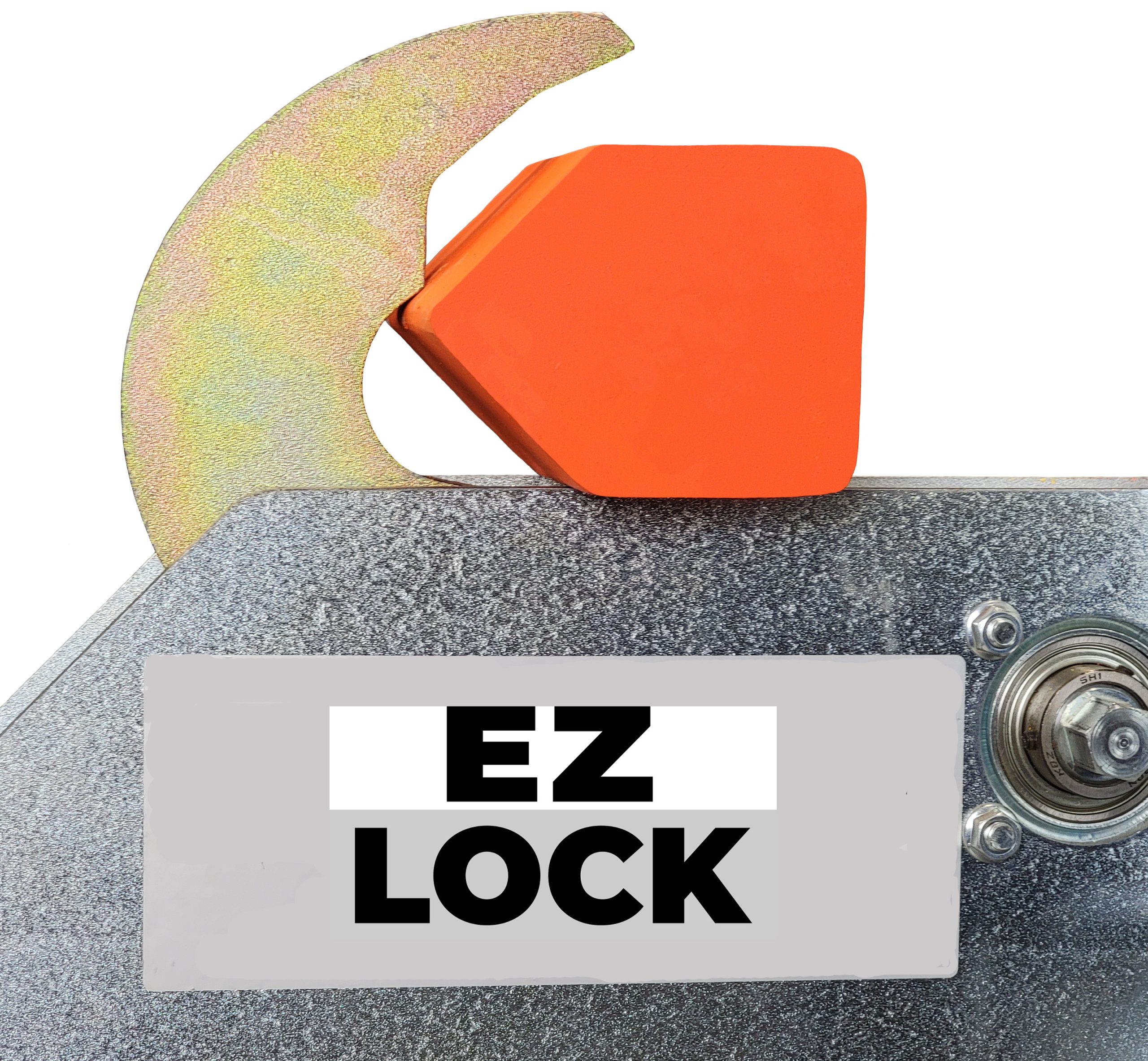

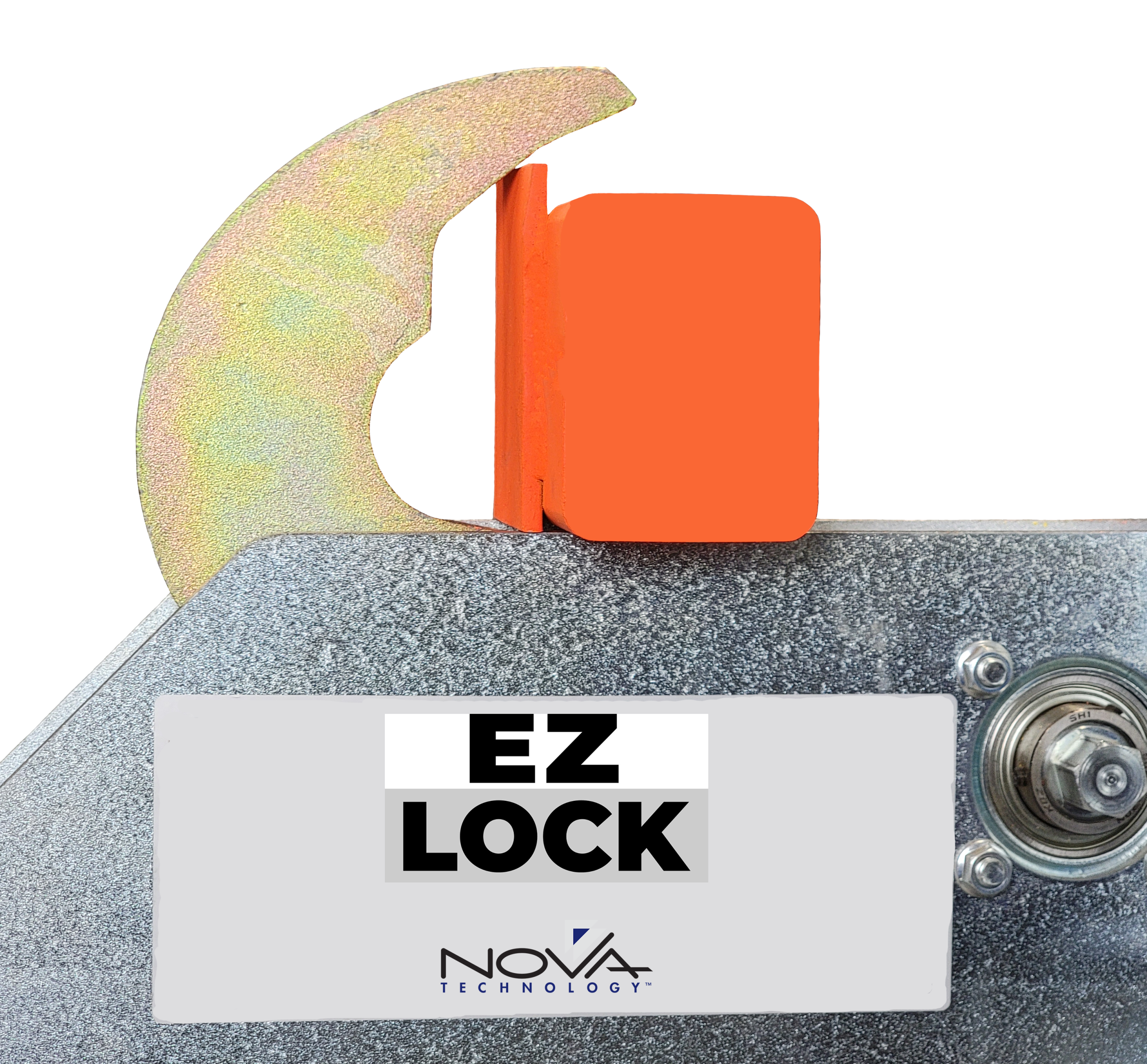

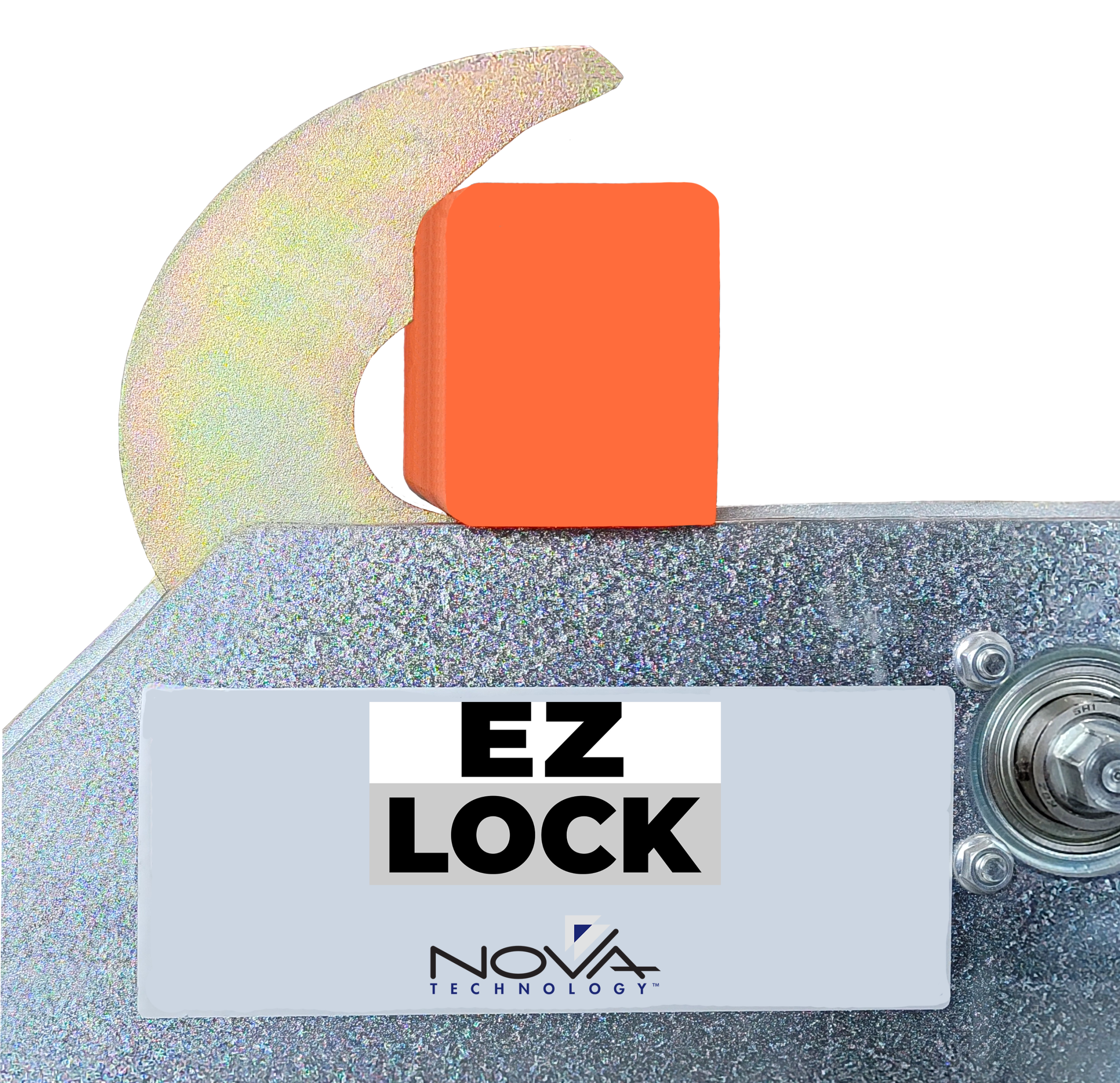

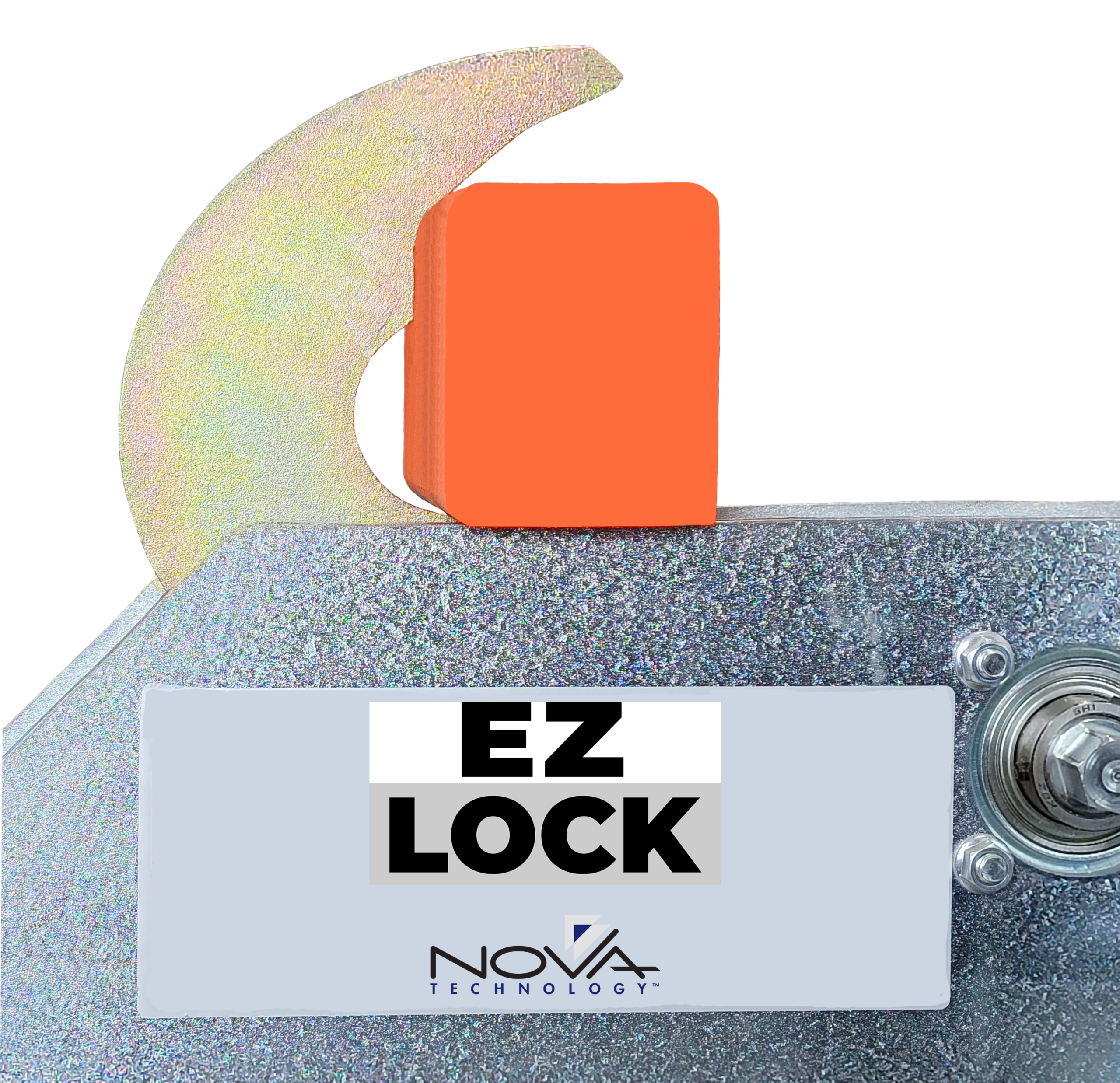

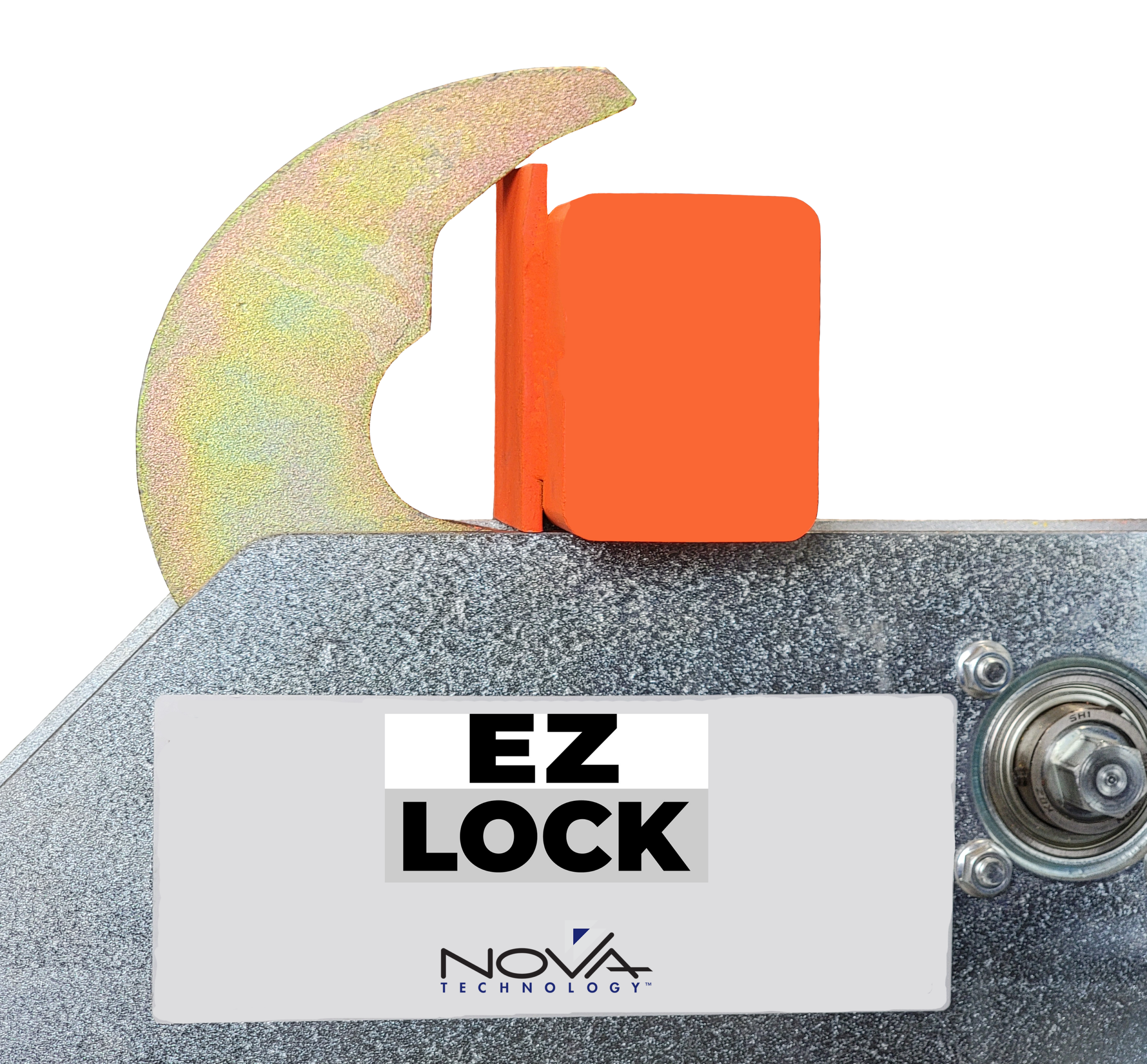

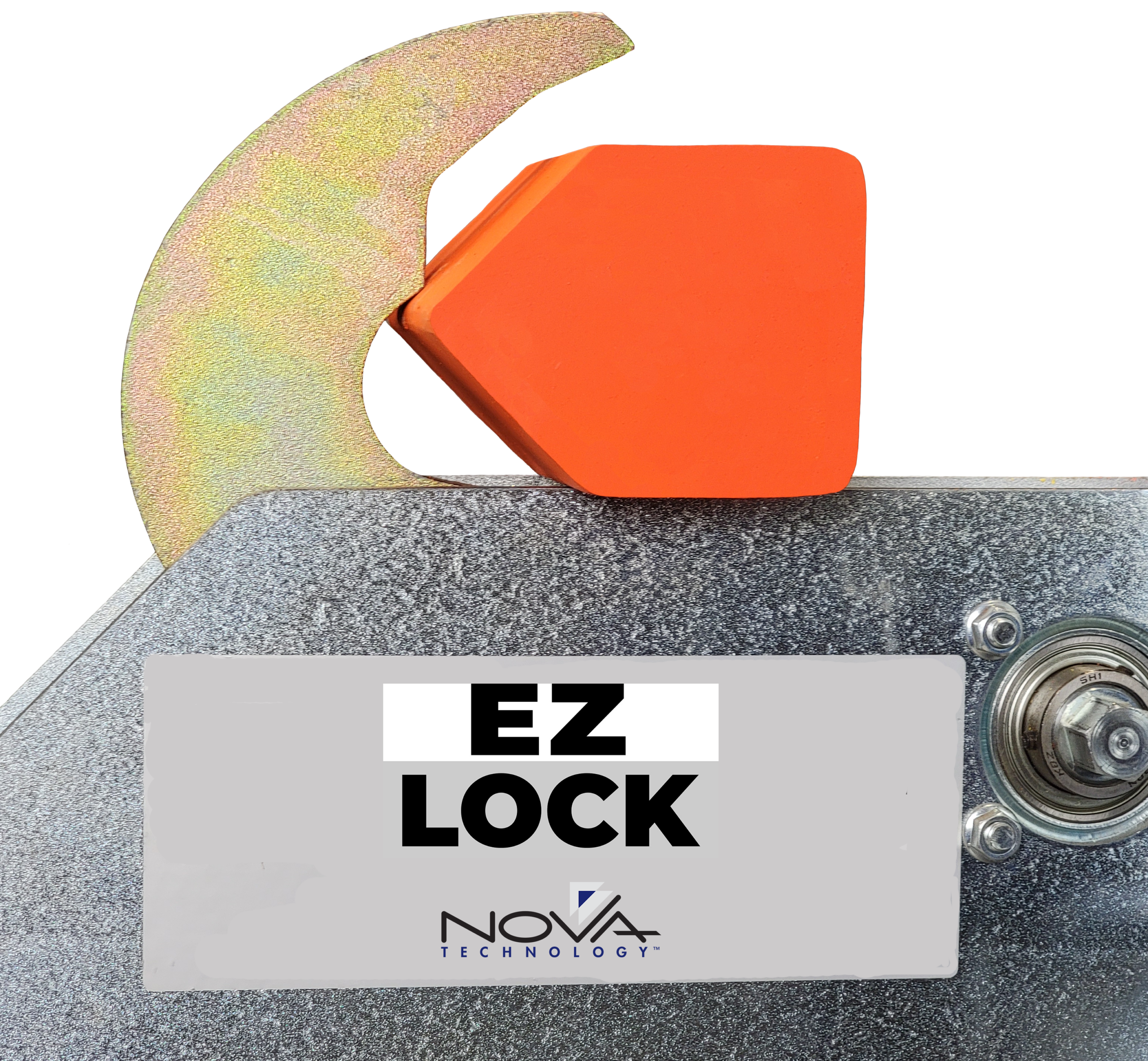

Secures RIG bars that are rectangular, pentagonal and feature 4 1/2-inch vertical center plates
Triple Range Hook safely secures RIGs while the hook is at various heights
Hook is upwardly biased and rotates to increase engagement if contacted by the RIG when trailer shifts during loading and unloading

FEATURES AND BENEFITS

Manual operation means no electrical installation is required
Features a proven rotating hook design

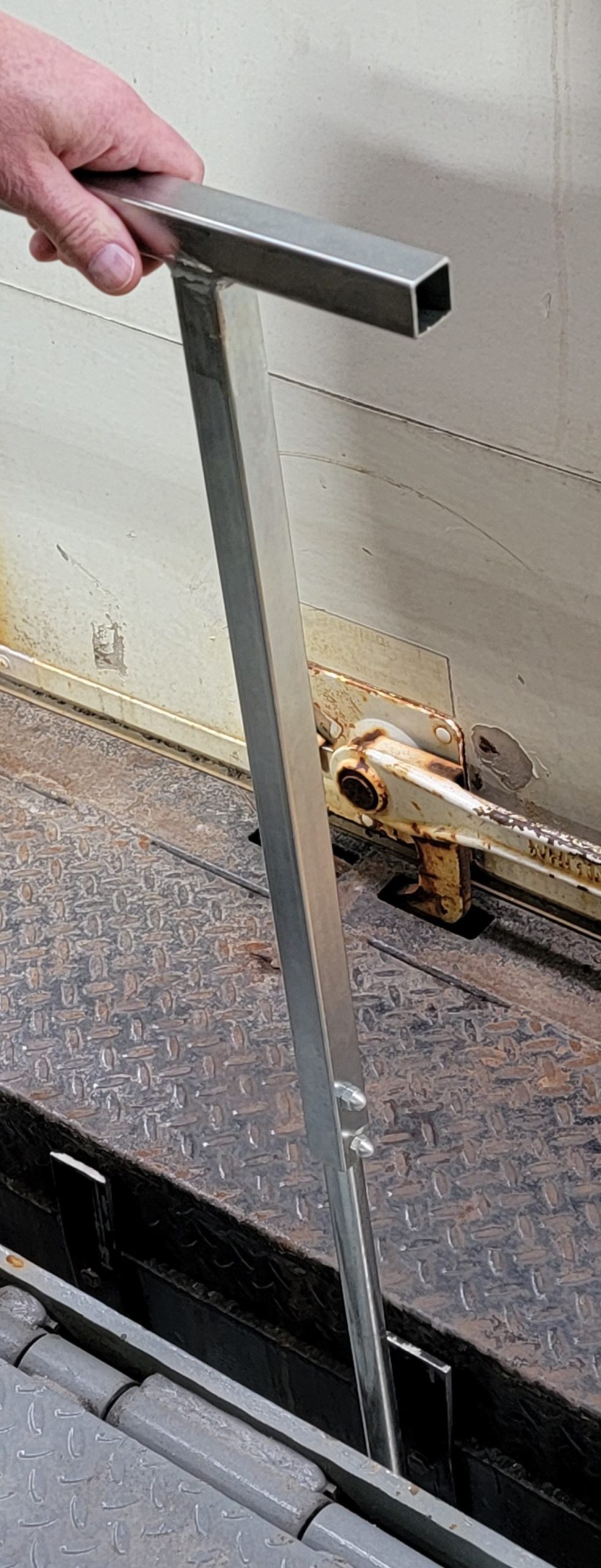

Equipped with an easy-to-use handle
Simple engagement and release operation
Compiles with most architectural design applications
Compatible with intermodal trailers
Capable of handling RIG bars with a plate
Most moving parts are enclosed for smooth operation
Includes slope extension
Hook maintains engagement with RIG
Includes a 5-year warranty

EXCEPTIONAL VERSATILITY: The EZ-Lock™ Triple Range Hook secures RIG bars that are rectangular, pentagonal and feature 4 1/2-inch vertical center plates. Its low-profile 9-inch carriage works with all standard trailers. Engagement range extends from 9 to 31-inches above the ground.

ROBUST PERFORMANCE & DURABILITY: The motor is IP67 compliant with watertight connectors and corrosion-resistant zinc plating.

RELIABLE: Withstands a pull-away force of over 38,000-pounds and helps prevent premature departure, trailer creep, landing gear collapse, trailer pop-up and trailer up-ending.

EASY TO USE: The spring-loaded carriage lowers with truck contact, and the restraint is operated by a control panel mounted inside the building.

OPERATION

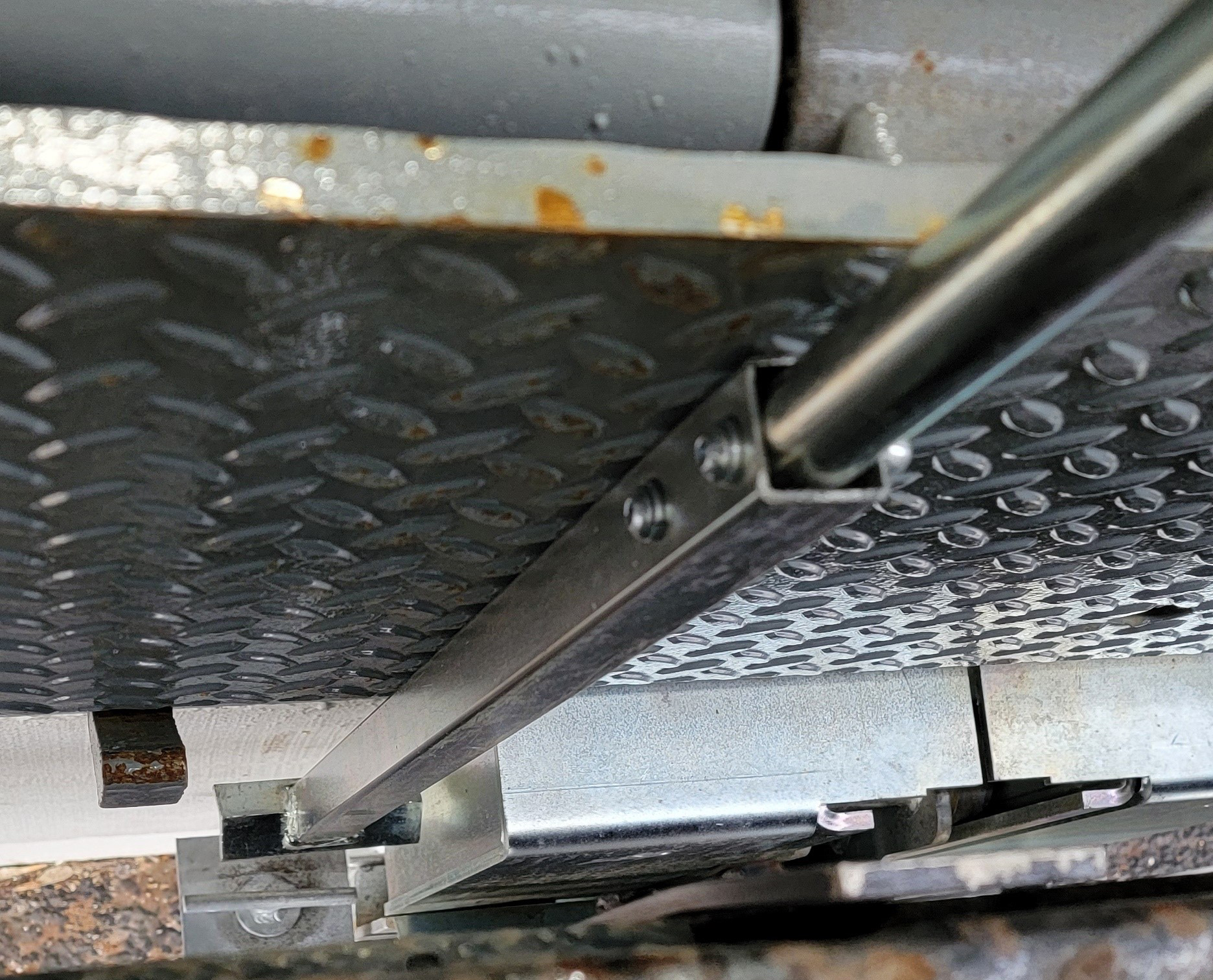

As the railer backs into position, the RIG contacts the spring-loaded structural steel housing, which rides down in its track and allows the RIG to move over the top of the housing. The dock attendant uses supplied handle and pushes down on pad of restraint with a slight twist to unlock hook from stored position. This allows hook to contact RIG to secure the trailer to the dock. The rotating hook can withstand a pull-away force of over 38,000-pounds. The EZ-Lock restraint maintains contact with the RIG and adjusts automatically with trailer float motion to ensure proper engagement at all times. After unloading/loading is complete, the dock attendant uses handle again and simply pushes down on pad of restraint to lock hook in stored position.

STRUCTURAL

The rotating hook can withstand a pull-away force of over 38,000-pounds and is machined from 1 1/4-inch thick A514 Grade B steel plate and driven with a 1 1/4-inch diameter shaft made from cold-rolled 1008 steel. The carriage side plates are constructed from abrasion-resistant 200F steel for maximum defense against wear from contact and friction with the RIG. The 1 1/4-inch diameter carriage axles and 2 5/16-inch diameter rollers are both made from cold-rolled 1045 steel. The roller track is formed out of ASTM A572 Grade 50 steel into a 6 3/8 x 3-inch channel with 7/8-inch flanges. The roller track is attached to the dock face with 15 heavy-duty sleeve anchors that each measure 5/8 x 4-inch long.
